If you’ve ever wanted to dive into the world of digital electronics, whether as a student, educator, engineer, or hobbyist, you’re going to love this tool: Digital — a powerful, free, and open-source logic circuit simulator created by Helmut Neemann. Available on GitHub at hneemann/Digital, this Java-based application combines clarity, flexibility, and educational value in one sleek package.
What Is Digital?

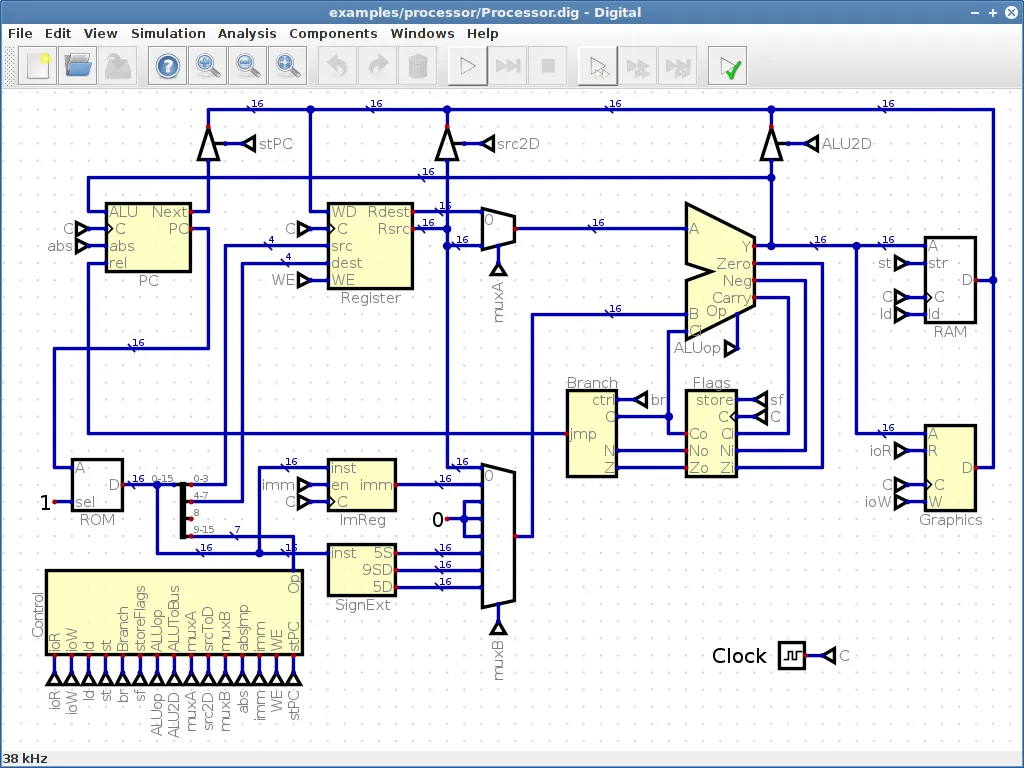

Digital is a logic circuit simulator designed with a clear goal: to make the teaching, learning, and development of digital logic intuitive and visual. It lets you create, simulate, and analyze logic circuits ranging from basic gates to complex CPUs — all with a drag-and-drop interface and real-time simulation.
Unlike other bloated EDA software, Digital is refreshingly simple, elegant, and lightweight. But don’t let its simplicity fool you — it’s capable of simulating complex architectures with clocked components, finite state machines, memory modules, and even custom microprocessors.
Key Features
Intuitive InterfaceDrag and drop components onto your canvas, connect wires, and see how your circuit behaves in real-time.
Real-Time SimulationChanges are reflected immediately, with live logic levels and animations that bring your circuits to life.
Modular DesignUse subcircuits and hierarchical design to keep things organized, even in large-scale projects.
Clocked ComponentsSimulate registers, flip-flops, RAM, and sequential logic effortlessly.
Built-in CPU & AssemblerDigital includes a simple, yet powerful CPU with its own instruction set and assembler — ideal for teaching computer architecture.
Made for EducationWidely used in universities and schools. Perfect for explaining logic gates, truth tables, FSMs, and microprocessor fundamentals.
Cross-platform (Java-based)Works on Windows, macOS, and Linux. Just download and run!
Open Source (GPL-3.0 License)Actively maintained and completely free. Fork it, contribute, or adapt it to your own projects.
Who Is It For?
Students: Learn digital logic step by step with instant feedback.
Educators: Use it in the classroom to teach logic circuits and CPU architecture interactively.
Makers & Hobbyists: Build and test your own logic-based inventions.
Researchers & Developers: Prototype logic systems before implementing them in hardware.
Whether you’re building an ALU, a traffic light controller, or your own 8-bit CPU, Digital gives you the tools to simulate it with precision.
Get Started in Minutes
Head over to the Digital GitHub repository.
Download the latest release (JAR file).
Run it using Java (Java 8 or higher required).
Start building your first circuit with just a few clicks.
No complex installations. No licenses. No fees. Just pure learning and tinkering joy.
Final Thoughts
In a world of expensive and overly complex simulation tools, Digital shines as a free, open-source, and educator-friendly alternative. It’s ideal for classrooms, home labs, and anyone curious about what happens beneath the silicon.
So if you’re ready to master digital logic — from basic gates to building your own CPU — it’s time to download Digital and start creating.
Explore. Simulate. Learn. With Digital.
